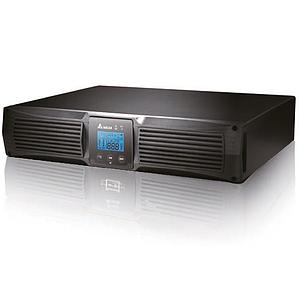

Delta Ups 1 Kva I/O=230/230 50Hz Wb

ModelRT-1K / RT-2K / RT-3K

Power Rating

 [RT-1K]: 1kVA / 0.9kW

 [RT-2K]: 2kVA/ 1.8kW

 [RT-3K]: 3kVA/ 2.7kW

Input

Nominal Voltage200*/208*/220/230/240 Vac

Voltage range175 ~ 280 Vac (full load)

 120 ~ 175 Vac (70 ~ 100% load)

Frequency40 ~ 70 Hz

Power Factor> 0.99 (full load)

Current Harmonic Distortion< 5%

Output

Power Factor0.9

Voltage200*/208*/220/230/240 Vac

Voltage Regulation± 1%

Frequency50/60 Hz ± 0.05 Hz

Voltage Harmonic Distortion< 2% (linear load)

Overload Capability< 105%: Continuous

 105% ~ 125%: 1 minute

 125% ~ 150%: 15 seconds

Receptacle[RT-1K]: IEC C13 x 6

 [RT-2K/3K]: IEC C13 x 6, IEC C19 x 1

Battery

Battery Voltage[RT-1K]: 24 Vdc

 [RT-2K]: 48 Vdc

 [RT-3K]: 72 Vdc

Typical Backup Time**[RT-1K]: 6.5 minutes

 [RT-2K/3K]: 7 minutes

Charge Current[RT-1K]: 1.5A

 [RT-2K/3K]: 2A

Recharge Time3 hours to 90%
